高浓度浆液堵塞而引发事故 Accidents caused by blockage of high concentration slurry

你是否还在为煤矿泥浆、油基泥浆、混凝土废料、市政污水、铝矿泥、河道疏浚等领域
被煤岩、矿渣、金属物等固体颗粒的泥浆、煤浆等高浓度浆液堵塞而烦恼吗？

It is also used for coal mine mud, oil-based mud, concrete waste, municipal sewage, aluminum slime, river dredging and other fields
Do you worry about the blockage of high concentration slurry such as slurry and coal slurry of solid
particles such as slag, sawdust and metal?

高浓度浆液
堵塞等问题淤泥煤岩矿渣煤浆

气动清淤排污泵为您解决难题

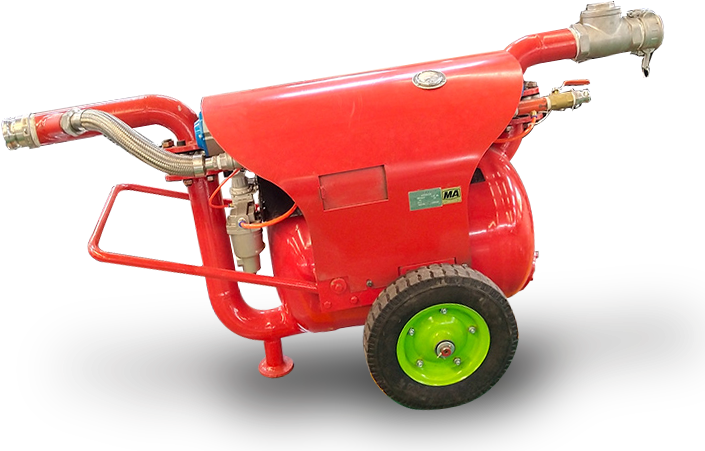

Pneumatic desilting sewage pump solves your problems 气动清淤排污泵

配件主要组成部分包括主体部分、控制系统及真空抽吸组件等

The main components of the accessories include the main body, control system and vacuum suction components

主体部分：由泵体、进料管道、排料管道组成，其担当的工作是吸料和排料。

控制系统：控制系统主要是利用气控换向阀、梭阀、球阀以及时间逻辑换向阀等阀体的有机结合，
实现对执行机构的控制与切换，达到机组工作时吸料与排料有序转换。

真空抽吸组件：它是根据文丘里效应的原理设计而成，包括供气口、排气口和真空口。当供气口的
供气压力高于一定值后，喷管射出超声速射流，由于气体的粘性，高速射流卷吸走负压腔内的气体，
使该腔形成较高的真空度。真空发生器的性能与喷管的最小直径、收缩和扩散管的形状、通径及其
相对位置和气源压力大小等诸多因素有关。该真空抽吸组件通过泵体与吸料口相通，当控制系统循
环切换控制气缸工作时，即可完成机组的吸料与排料过程。

气动清淤排污泵工作原理

Working principle of pneumatic desilting sewage pump

气动清淤排污泵是利用真空负压原理工作，适用范围广

Pneumatic desilting sewage pump works on the principle of vacuum negative pressure and has a wide range of application

气动清淤排污泵利用真空负压原理，把煤泥浆料吸入物料罐中，在利用压风把物料排走，其先进的空气动力真空概念使矿用气动清淤排污泵达到前列水平。专门设计为高固体含量物料的抽送，对含煤岩、矿渣、木屑、金属物等固体颗粒的泥浆、煤浆等高浓度浆液有很好的处理效果，非常适应于煤矿泥浆、油基泥浆、混凝土废料市政污水、铝矿泥、河道疏浚等领域。

气动清淤排污泵

Pneumatic desilting sewage pump

操作简单
质量保障
安全稳定
精准高效

The pneumatic desilting sewage pump uses the principle of vacuum negative pressure to suck the slime slurry into the material tank and use the compressed air to remove the material Its advanced aerodynamicvacuum concept makes the mine pneumatic desiltingsewage pump reach the forefront level. specially designedFor the pumping of materials with high solid content, slurry and coal slurry containing solid particles such as coal rock, slag, sawdust and metal are usedHigh concentration slurry has good treatment effect and is very suitable for coal mine slurry, oil-based slurry and coagulationSoil waste, municipal sewage, aluminum slime, river dredging and other fields.

气动清淤排污泵适用条件

Advantages and characteristics of pneumatic desilting sewage pump 气动清淤排污泵

多种使用环境为您提供便利服务

A variety of use environments provide convenient services for you

清淤泵由吸料管
进水口潜入水下
输送介质温度不
超过40℃
含固体颗粒的最大
直径不超过20mm
输送介质的PH在
4～10范围内
工作环境温度
（5～40）℃
适用气压范围
0.60MPa～0.70Mpa

气动清淤排污泵特点优势

Characteristics and advantages of pneumatic desilting sewage pump 气动清淤排污泵

得到顾客的满意和喜欢，就是好品质

Good quality is to be satisfied and liked by customers

运行平稳安全可靠 Stable, safe and reliable operation
过污能力强，可抽送具有流动性高固体含量物料纯气动产品，无任何电子器件，安全可靠
It has strong pollution capacity, can pump materials with high fluidity and solid content, pure pneumatic products, without any electronic devices, safe and reliable
设计巧妙自动运行 Ingenious design and automatic operation
机组结构紧凑，设计巧妙，可实现自动运行。
The unit has compact structure and ingenious design, and can realize automatic operation.
耐磨损寿命长 Wear resistance and long service life
运动部件与物料不接触，无磨损，运行稳定，使用寿命长。
The moving parts have no contact with materials, no wear, stable operation and long service life.
维护简单安装方便 Simple maintenance and easy installation
空载或过载对设备无损伤，维护简单。
No load or overload has no damage to the equipment and simple maintenance.
能耗少节能环保 Low energy consumption, energy conservation and environmental protection
体积小，重量轻，移动灵活，操作方便，适用范围广泛,能耗小，节能环保
Small volume, light weight, flexible movement, convenient operation,wide application range, low energy consumption, energy conservation and environmental protection.

气动清淤排污泵产品参数

Product parameters of pneumatic desilting sewage pump 气动清淤排污泵

抓好产品质量，务必从我做起。

Do a good job in product quality and be sure to start with me.

型号	流量m³/h	扬程m	耗气量m³/min	工作气压MPa	吸料周期	排放周期	安装外形尺寸（长×宽×高）mm
QYF10-20	10	20	5.0	0.55	6s	6s	1830×782×890
QYF14-20	14	20	5.5	0.55	6s	6s	1830×782×890
QYF17-20	17	20	7.5	0.55	6s	6s	1830×782×890
QYF20-20	20	20	9.5	0.55	8s	8s	1830×782×890
QYF25-15	25	15	10.5	0.55	8s	8s	1830×782×890
